Induction heating power supply

Publication time : 6/22/2018 2:44:27 PM

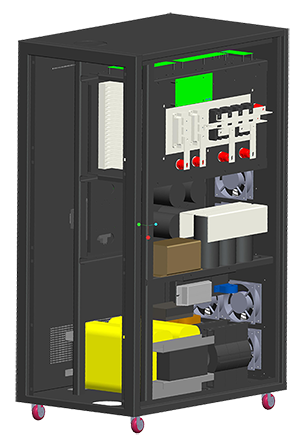

Induction heating power supply
IHP medium frequency induction heating power supply is a medium frequency induction heating power supply using ARM new generation 32 bit processor, using PWM pulse width modulation mode, IGBT as the main control component, middle and high frequency transformer isolation, fast recovery diode rectifier, IGBT reversing inverter.

The working mode of it is the process of exchanging AC- DC -middle and high frequency AC-DC- AC. The power supply is small, energy saving and high efficiency. It is a new generation of medium frequency induction heating power, and it is a substitute for the SCR thyristor medium frequency induction heating power supply.

  The main control chip adopts ARM32 bit processor, which can be applied to various intelligent control schemes.

  IGBT is used as the main control element, and medium and high frequency transformers are isolated.

  Automatic switching of constant voltage, constant current and constant power

  Dynamic response and fast speed

  Frequency adaptive, automatic tracking of output frequency

  A wide range of output frequency range 400HZ-100KHZ

  The protection function is complete, overload, overvoltage, overcurrent, over temperature, under voltage, short circuit, etc.

  LCD parameter display, set value and actual value display simultaneously.

  RS232 communication interface, standard MODBUS-RTU protocol, can be transferred to any other protocol.

Input parameters

Name

Idex

Remarks

Rated voltage

3 phase 380V/400V(any voltage can be customized)
1 phase 220V/230V(any voltage can be customized)

3 phase 3wires(L1,L2,L3)+ PE

1 phase 2 wires (L,N)+ PE

Input voltage range

±10%(other range can be customized)



Input frequency

40-70HZ



12 pulse rectifier transformer

Phase-shifting transformer

option, non - standard

Efficency

>92%

different load rates may be biased

Power factor

>0.95




Output parameters

Name

Idex

Remarks

Output medium frequency voltage

5-2000V



Output intermediate frequency current

5-5000A



Output frequency

400-100KHZ(option)

please explain when ordering

Stabilized voltage precision

≤0.5%



Stabilized current precision

≤0.5%




Control parameters

Name

Idex

Remarks

Main control element

Control chip using ARM32 bit processor



Control voltage and current acquisition mode

Acquisition of DC voltage and current isolation sensor




Control mode

Voltage closed loop control, current closed loop mode, voltage and current double feedback closed loop mode.



External control interface

0-5V/0-10V/0-20mA/4-20mA

please explain when ordering

Communication interface

RS232,MODBUS-RTU protocol

RS485,TCP/IP,GPRS can be optional


Display parameters

Name

Idex

Remarks

Display medium

128*32(LCD)or 7 inch touch screen




Display rated parameters

Output AC voltage, current, frequency, DC voltage, current, power and load percentage; set value voltage, current and power;




Display alarm content

Voltage fault feedback, current fault feedback, IGBT alarm, inversion alarm, output overload, high temperature



Rated parameter display precision

1.0 degree



Voltage parameter resolution

0.1V or 0.01V

Customizable higher resolution

Current parameter resolution

0.1A or 0.01A

Customizable higher resolution


Protection parameters

Name

Idex

Remarks


Protection type

Voltage fault feedback, current fault feedback, IGBT alarm, inversion alarm, output overload, high temperature



Protection mode

1. Cut off the output;
2, limiting current and voltage.




Physical parameters

Name

Idex

Remarks

Cooling mode

Natural cooling or forced air cooling or water cooling



Protection grade

Indoor IP21; outdoor IP33 or higher level

Name composition




Model

IHP-10/200

IHP-10/300

IHP-10/400

IHP-10/600

IHP-10/800

IHP-10/1000

IHP-10/1200

IHP-10/1500

IHP-10/2000

IHP-10/3000

IHP-10/6000

IHP-10/10000

IHP-20/200

IHP-20/300

IHP-20/400

IHP-20/600

IHP-20/800

IHP-20/1000

IHP-20/1200

IHP-20/1500

IHP-20/2000

IHP-20/3000

IHP-20/6000

IHP-20/10000

IHP-30/200

IHP-30/300

IHP-30/400

IHP-30/600

IHP-30/800

IHP-30/1000

IHP-30/1200

IHP-30/1500

IHP-30/2000

IHP-30/3000

IHP-30/6000

IHP-30/10000

IHP-50/200

IHP-50/300

IHP-50/400

IHP-50/600

IHP-50/800

IHP-50/1000

IHP-50/1200

IHP-50/1500

IHP-50/2000

IHP-50/3000

IHP-50/6000

IHP-50/10000

IHP-80/50

IHP-80/100

IHP-80/150

IHP-80/200

IHP-80/300

IHP-80/400

IHP-80/600

IHP-80/800

IHP-80/1000

IHP-80/1200

IHP-80/1500

IHP-80/2000

IHP-120/10

IHP-120/20

IHP-120/30

IHP-120/50

IHP-120/100

IHP-120/150

IHP-120/200

IHP-120/300

IHP-120/400

IHP-120/600

IHP-120/800

IHP-120/1000

IHP-180/10

IHP-180/20

IHP-180/30

IHP-180/50

IHP-180/100

IHP-180/150

IHP-180/200

IHP-180/300

IHP-180/400

IHP-180/600

IHP-180/800

IHP-180/1000

IHP-250/10

IHP-250/20

IHP-250/30

IHP-250/50

IHP-250/100

IHP-250/150

IHP-250/200

IHP-250/300

IHP-250/400

IHP-250/600

IHP-250/800

IHP-250/1000

IHP-300/10

IHP-300/20

IHP-300/30

IHP-300/50

IHP-300/100

IHP-300/150

IHP-300/200

IHP-300/300

IHP-300/400

IHP-300/600

IHP-300/800

IHP-300/1000

IHP-400/10

IHP-400/20

IHP-400/30

IHP-400/50

IHP-400/100

IHP-400/150

IHP-400/200

IHP-400/300

IHP-400/400

IHP-400/600

IHP-400/800

IHP-400/1000

IHP-600/10

IHP-600/20

IHP-600/30

IHP-600/50

IHP-600/100

IHP-600/150

IHP-600/200

IHP-600/300

IHP-600/400

IHP-600/600

IHP-600/800

IHP-600/1000

IHP-800/5

IHP-800/10

IHP-800/20

IHP-800/30

IHP-800/50

IHP-800/100

IHP-800/200

IHP-800/300

IHP-800/400

IHP-1000/5

IHP-1000/10

IHP-1000/20

IHP-1000/30

IHP-1000/50

IHP-1000/100

IHP-1000/200

IHP-1000/300

IHP-1000/400

Annealing, tempering, crystal growth, metal melting, glass fiber induction heating...
